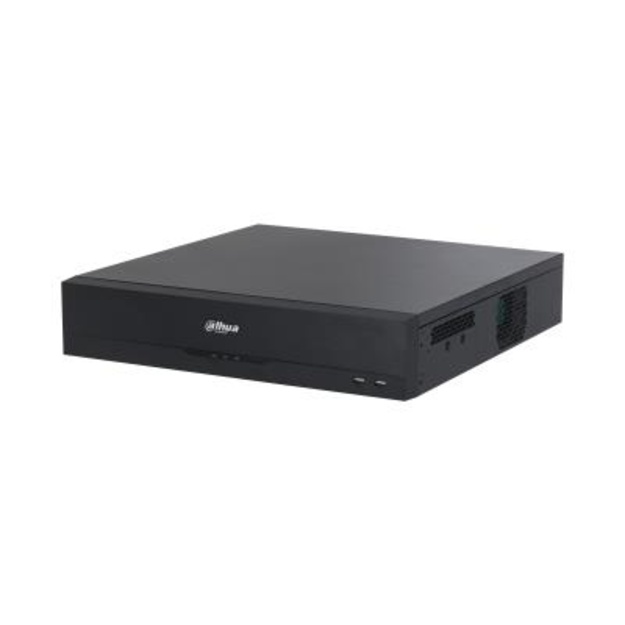

NET VIDEO RECORDER 64CH/NVR5864-EI DAHUA
NET VIDEO RECORDER 64CH/NVR5864-EI DAHUA
- Description
- 64 IP channel max, up to 32MP resolution
Max: 384Mbps recording bandwidth, Smart H.265+ H.265 Smart H.264+ H.264 MJPEG
2x VGA/HDMI up to 4K output, decoding up to 2-channel 32 MP @ 20 fps
8 SATA III ports, up to 16 TB for a single HDD, RAID 0/1/5/6/10

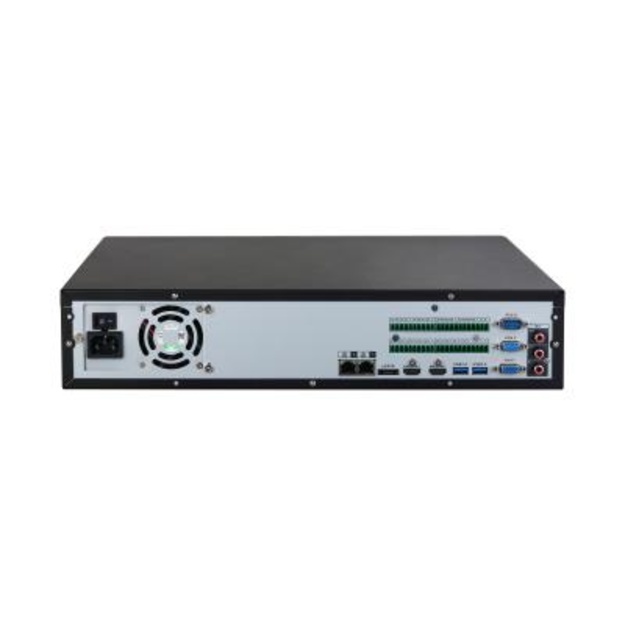

No front panel control, 16/8 alarm I/O, 2 USB, Audio I/O: 1/2, eSATA, RS-232, RS-485
Rack/desktop mounted chassis
AI by recorder: 2-channel face detection and recognition, 4-channel perimeter protection, and 8-channel SMD Plus.
AI by camera: Face detection and recognition, perimeter protection, SMD Plus, metadata, ANPR, stereo analysis, heat map, and people counting.
Free IP monitoring software available
Other brands IP cameras supported
- Vendor Homepage
- www.dahuasecurity.com/ceen/products/All-Products/Network-Recorders/WizSense-Series/NVR-5-EI-Series/8HDD/NVR5864-EI
- Model
- NVR5864-EI
- Number of Channels
- 64
- Desktop/pedestal
- Yes
- Rack
- Yes
- CPU
- Embedded Linux
- Integrated LAN
- Gigabit
- 15pin D-sub
- 2
- Alarm In
- 16
- Alarm Out
- 8
- Audio-In
- 1
- Audio-Out
- 2
- eSATA
- 1
- HDMI
- 2
- RJ45
- 2
- RS232
- 1
- RS-485
- 1
- USB 2.0
- 2
- Power supply requirements
- 100–240 VAC, 50-60 Hz
- Dimensions
- 439.9 × 457.9 x 89.0 mm
- Shipping box quantity
- 1
- Shipping Box Depth
- 56 cm
- Shipping Box Height
- 22 cm
- Shipping Box Weight
- 8.9 kg
- Shipping Box Width
- 57 cm
- Unit Brutto Volume
- 0.07022 cubm
- Unit Net Weight
- 6.4 kg
- Unit Gross Weight
- 8.9 kg
- Unit Box Width
- 0.57
- Unit Box Length
- 0.56
- Unit Box Height
- 0.22
- Full Description Line
- Channels 64|Desktop/pedestal|Rack|CPU Embedded Linux|Integrated LAN Gigabit|2x15pin D-sub|2xHDMI|1xAudio-In|2xAudio-Out|1xRS232|2xUSB 2.0|1xeSATA|2xRJ45|1xRS-485|16xAlarm In|8xAlarm Out|Power supply requirements 100–240 VAC, 50-60 Hz|Dim. 439.9 × 457.9 x 89.0 mm
- Category Code
- NVR
| Savybės |
| CPU modelis |
Embedded Linux |
| Integruotas LAN |
Gigabit |
| Kanalų skaičius |
64 |
| Montavimo tipas |
Yes; Yes |
