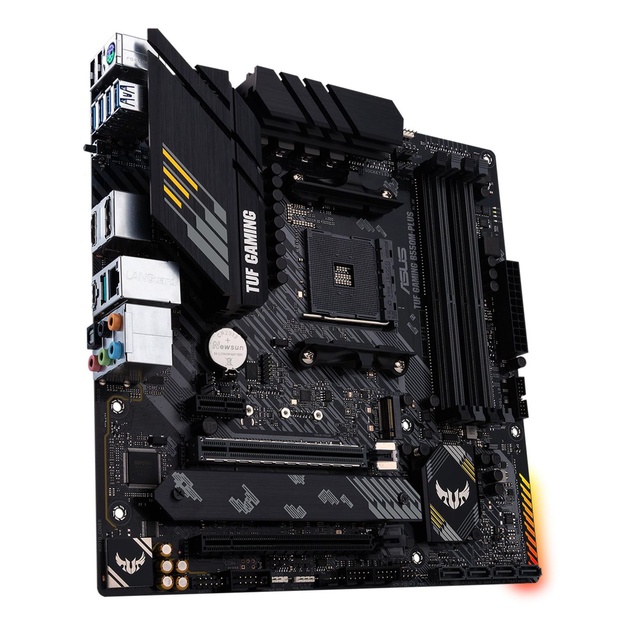

Pagrindinė plokštė|ASUS|AMD B550|SAM4|MicroATX|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|2xM.2|1xPCI-Express 4.0 16x|Memory DDR4|Memory slots 4|1xHDMI|1xDisplayPort|2xUSB 2.0|1xUSB type C|5xUSB 3.2|1xPS/2|1xOptical S/PDIF|1xRJ45|5xAudio port|TUFGAMINGB55
Pagrindinė plokštė|ASUS|AMD B550|SAM4|MicroATX|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|2xM.2|1xPCI-Express 4.0 16x|Memory DDR4|Memory slots 4|1xHDMI|1xDisplayPort|2xUSB 2.0|1xUSB type C|5xUSB 3.2|1xPS/2|1xOptical S/PDIF|1xRJ45|5xAudio port|TUFGAMINGB55
- Audio port
- 5
- Category Code
- MBA
- Chipset
- AMD B550
- Description
- AMD B550 (Ryzen AM4) micro ATX gaming motherboard with PCIe 4.0, dual M.2, 10 DrMOS power stages, 2.5 Gb Ethernet, HDMI, DisplayPort, SATA 6 Gbps, USB 3.2 Gen 2 Type-A and Type-C, and Aura Sync RGB lighting support- AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ Processors- Enhanced power solution: 8+2 DrMOS power stages, ProCool connector, military-grade TUF components, and Digi+ VRM for maximum durability- Comprehensive cooling: VRM heatsinks, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 2+ utility- Next-gen connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C support- Made for online gaming: 2.5 Gb Ethernet, TUF LANGuard and TurboLAN technology- Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in- AI noise-canceling microphone: Provides crystal-clear in-game voice communication
- DisplayPort
- 1
- Form Factor
- MicroATX
- Frequency speed
- 2133/2400/2666/2800/3000/3200/3333/3466/3600/3733/3866/4000/4133/4266/4400/4466/4600/4800 MHz
- Full Description Line
- AMD B550|SAM4|MicroATX|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xPCI-Express 4.0 16x|2xM.2|DDR4|4800/4600/4466/4400/4266/4133/4000/3866/3733/3600/3466/3333/3200/3000/2800/2666/2400/2133 MHz|Memory slots 4|1xHDMI|1xDisplayPort|2xUSB 2.0|1xUSB type C|5xUSB 3.2|1xPS/2|1xOptical S/PDIF|1xRJ45|5xAudio port|USB 2.0|USB 3.2|Serial|SATA 3.0|Video Depending on CPU|Audio|LAN Gigabit|RAID SATA 0, 1, 10
- HDMI
- 1
- Integrated audio
- Yes
- Integrated LAN
- Gigabit
- Integrated video
- Depending on CPU
- M.2
- 2
- Memory slots
- 4
- Memory type
- DDR4
- Optical S/PDIF
- 1
- PCI-Express 3.0 16x
- 1
- PCI-Express 3.0 1x
- 1
- PCI-Express 4.0 16x
- 1
- PS/2
- 1
- RAID
- SATA 0, 1, 10
- RJ45
- 1
- SATA 3.0
- Yes
- Serial
- Yes
- Shipping Box Depth
- 56.5 cm
- Shipping Box Height
- 29 cm
- Shipping box quantity
- 10
- Shipping Box Weight
- 14.2 kg
- Shipping Box Width
- 36 cm
- Socket
- SAM4
- Unit Box Height
- 0.29
- Unit Box Length
- 0.565
- Unit Box Width
- 0.36
- Unit Brutto Volume
- 0.005899 cubm
- Unit Gross Weight
- 1.42 kg
- Unit Net Weight
- 1.1 kg
- USB 2.0
- Yes
- USB 3.2
- Yes
- USB type C
- 1
- Vendor Homepage
- www.asus.com/Motherboards/TUF-GAMING-B550M-PLUS/specifications/
| Savybės |
| Atminties tipas |
DDR4 |
| Dažnis |
2133/2400/2666/2800/3000/3200/3333/3466/3600/3733/3866/4000/4133/4266/4400/4466/4600/4800 MHz |
| Formos koeficientas |
MicroATX |
| Integruota video |
Depending on CPU |
| Integruotas LAN |
Gigabit |
| Lizdas |
SAM4 |
| Lustas |
AMD B550 |
| RAM atminties lizdai |
4 |
| Įėjimo/išėjimo jungtys |
5; 1; 1; 1; 1; 1; Yes; Yes |
