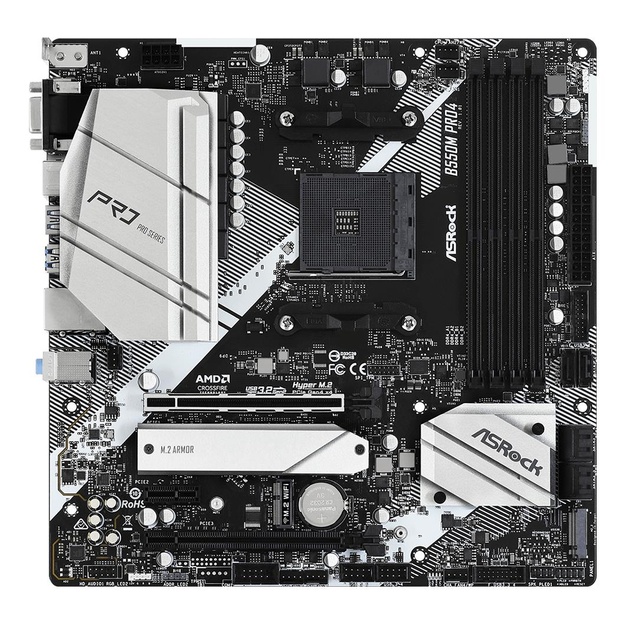

Pagrindinė plokštė|ASROCK|AMD B550|SAM4|MicroATX|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xM.2|1xPCI-Express 4.0 16x|Memory DDR4|Memory slots 4|1x15pin D-sub|1xHDMI|1xDisplayPort|2xUSB 2.0|1xUSB type C|5xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|B550MPRO4
Pagrindinė plokštė|ASROCK|AMD B550|SAM4|MicroATX|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xM.2|1xPCI-Express 4.0 16x|Memory DDR4|Memory slots 4|1x15pin D-sub|1xHDMI|1xDisplayPort|2xUSB 2.0|1xUSB type C|5xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|B550MPRO4
- 15pin D-sub
- 1
- Audio port
- 3
- Category Code
- MBA
- Chipset
- AMD B550
- Description
- - Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors- 8 Power Phase Design, Digi Power- Supports DDR4 4733+ (OC)- 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key E for WiFi- Graphics Output Options: HDMI, DisplayPort, D-Sub- AMD CrossFireX™- 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio- 6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)- 2 USB 3.2 Gen2 (Rear Type A+C), 8 USB 3.2 Gen1 (4 Front, 4 Rear)- Realtek Gigabit LAN
- DisplayPort
- 1
- Form Factor
- MicroATX
- Frequency speed
- 2133/2400/2666/2933/3200/3466/3600/3733/3800/3866/4000/4133/4200/4266/4333/4400/4466/4533/4600/4666/4733 MHz
- Full Description Line
- AMD B550|SAM4|MicroATX|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xPCI-Express 4.0 16x|1xM.2|DDR4|4733/4666/4600/4533/4466/4400/4333/4266/4200/4133/4000/3866/3800/3733/3600/3466/3200/2933/2666/2400/2133 MHz|Memory slots 4|1x15pin D-sub|1xHDMI|1xDisplayPort|2xUSB 2.0|1xUSB type C|5xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|USB 2.0|USB 3.2|Serial|SATA 3.0|Video Depending on CPU|Audio Realtek ALC1200|LAN Gigabit|RAID SATA 0, 1, 10
- HDMI
- 1
- Included Accessories
- - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 2 x Screws for M.2 Sockets
- Integrated audio
- Realtek ALC1200
- Integrated LAN
- Gigabit
- Integrated video
- Depending on CPU
- M.2
- 1
- Memory slots
- 4
- Memory type
- DDR4
- PCI-Express 3.0 16x
- 1
- PCI-Express 3.0 1x
- 1
- PCI-Express 4.0 16x
- 1
- PS/2
- 1
- RAID
- SATA 0, 1, 10
- RJ45
- 1
- SATA 3.0
- Yes
- Serial
- Yes
- Shipping Box Depth
- 64 cm
- Shipping Box Height
- 54 cm
- Shipping box quantity
- 20
- Shipping Box Weight
- 27.8 kg
- Shipping Box Width
- 29 cm
- Socket
- SAM4
- Unit Box Height
- 0.54
- Unit Box Length
- 0.64
- Unit Box Width
- 0.29
- Unit Brutto Volume
- 0.005011 cubm
- Unit Gross Weight
- 1.39 kg
- Unit Net Weight
- 1.1 kg
- USB 2.0
- Yes
- USB 3.2
- Yes
- USB-C
- 1
- Vendor Homepage
- www.asrock.com/mb/AMD/B550M%20Pro4/
| Savybės |
| Atminties tipas |
DDR4 |
| Dažnis |
2133/2400/2666/2933/3200/3466/3600/3733/3800/3866/4000/4133/4200/4266/4333/4400/4466/4533/4600/4666/4733 MHz |
| Formos koeficientas |
MicroATX |
| Įėjimo/išėjimo jungtys |
1; 3; 1; 1; 1; 1; Yes; Yes |
| Integruota video |
Depending on CPU |
| Integruotas LAN |
Gigabit |
| Lizdas |
SAM4 |
| Lustas |
AMD B550 |
| RAM atminties lizdai |
4 |
