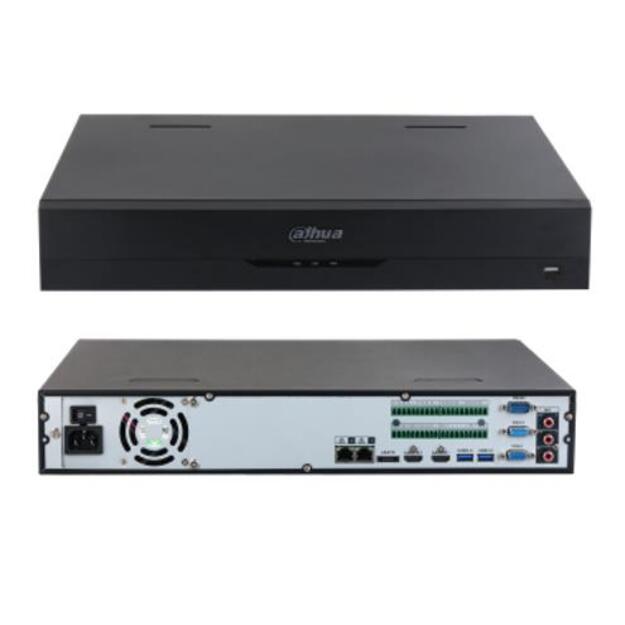

NET VIDEO RECORDER 32CH/NVR5432-EI DAHUA

15pin D-sub

2

Alarm In

16

Alarm Out

6

CPU

Industrial-grade processor

Description

32 IP channel max, up to 12MP resolution
Max 32MP, Record Rate 384 Mbps
Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
2x HDMI/ 2x VGA
4 SATA interface up to 16TB
2 RJ-45 port (10/100/1000Mbps), 1x eSATA
16/6 alarm I/O, RS232, 4x USB, RS485
1.5U 19” chassis, no front panel control, mouse included
Other brands IP cameras supported: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc., ONVIF 21.12(Profile T Profile S Profile G) CGI SDK
2-channel face detection and recognition, 4-channel perimeter protection, and 8-channel SMD Plus
Free IP monitoring software available

Desktop/pedestal

Yes

Dimensions

440.0 × 415.1 x 70.0mm

HDMI

2

Integrated LAN

Gigabit

Number of Channels

32

Number of drives/bays

4

Power consumption

13 Watts

Power supply requirements

100–240 VAC, 50-60 Hz

Rack 1.5U

Yes

RJ45

2

RS232

1

RS-485

1

SATA

Yes

Shipping box quantity

1

Unit Brutto Volume

0.05565 cubm

Unit Gross Weight

6.11 kg

Unit Net Weight

4.74 kg

USB 2.0

4

Vendor Homepage

www.dahuasecurity.com/products/All-Products/Network-Recorders/WizSense-Series/NVR-5-EI-Series/4HDD/NVR5432-EI
