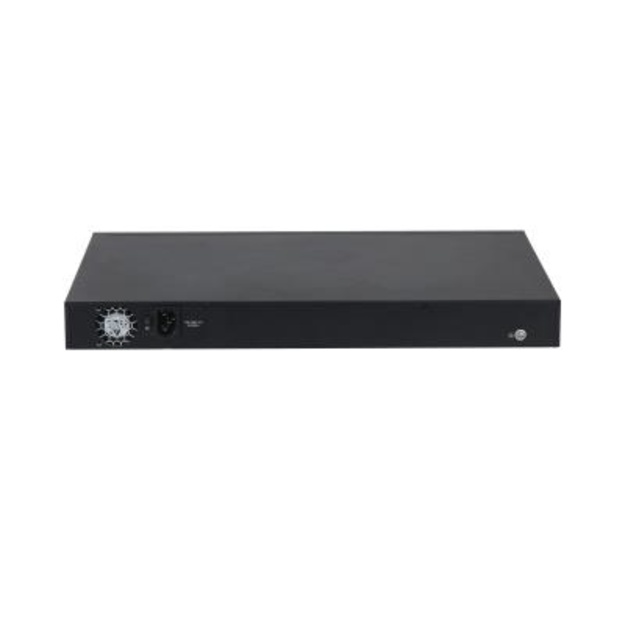

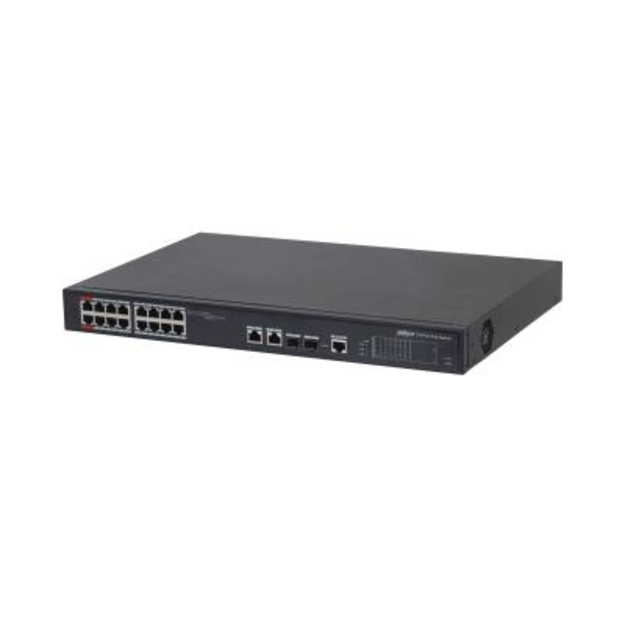

Komutatorius |DAHUA|Type L2|Desktop/pedestal|90 Watts|PFS4218-16ET-240-V3

> Layer 2 management PoE switch> Intelligent PoE> Red port supports 90W IEEE802.3bt> Web management with friendly interface and easy operation> 250 m long distance PoE transmission> PoE watchdog> Plug and play
Communication Standard: IEEE802.3 IEEE802.3u IEEE802.3x IEEE 802.3ab IEEE 802.3z
PoE Standard: IEEE802.3af/ IEEE802.3at/ Hi-PoE/IEEE802.3bt
Port 1-16: 16 × RJ-45 10 M/100 M (PoE)
Port 17-18: 2 × RJ-45 10 M/100 M/1000 M (uplink)
Port 17-18: 2 × SFP 1000 M (uplink) (combo)
PoE Budget: Port 1-2 &le 90W, Port 3-16&le 30W, total &le 240W

10/100/1000M

2

10/100M

16

Category Code

SWI

Combo 10/100/1000M-T/SFP

2

Description

> Layer 2 management PoE switch> Intelligent PoE> Red port supports 90W IEEE802.3bt> Web management with friendly interface and easy operation> 250 m long distance PoE transmission> PoE watchdog> Plug and play
Communication Standard: IEEE802.3 IEEE802.3u IEEE802.3x IEEE 802.3ab IEEE 802.3z
PoE Standard: IEEE802.3af/ IEEE802.3at/ Hi-PoE/IEEE802.3bt
Port 1-16: 16 × RJ-45 10 M/100 M (PoE)
Port 17-18: 2 × RJ-45 10 M/100 M/1000 M (uplink)
Port 17-18: 2 × SFP 1000 M (uplink) (combo)
PoE Budget: Port 1-2 &le 90W, Port 3-16&le 30W, total &le 240W

Desktop/pedestal

Yes

Dimensions

440 mm × 300 mm × 44 mm

Forwarding rate

5.36 Mpps

Full Description Line

Type L2|Desktop/pedestal|16x10/100M|2x10/100/1000M|2xCombo 10/100/1000M-T/SFP|IEEE 802.3|IEEE 802.3ab|IEEE 802.3u|IEEE 802.3x|IEEE 802.3z|PoE power budget 90 Watts|Switching capacity 8.8 Gbps|Forwarding rate 5.36 Mpps|Dimensions 440 mm × 300 mm × 44 mm|Unit Net Weight 3.32 kg

IEEE 802.3

Yes

IEEE 802.3ab

Yes

IEEE 802.3u

Yes

IEEE 802.3x

Yes

IEEE 802.3z

Yes

PoE power budget

90 Watts

Primary port count

16

Shipping Box Depth

53 cm

Shipping Box Height

41.5 cm

Shipping box quantity

1

Shipping Box Weight

4.42 kg

Shipping Box Width

11 cm

Switch type

L2

Switching capacity

8.8 Gbps

Unit Box Height

0.415

Unit Box Length

0.53

Unit Box Width

0.11

Unit Brutto Volume

0.02419 cubm

Unit Gross Weight

4.42 kg

Unit Net Weight

3.32 kg

Vendor Homepage

www.dahuasecurity.com/products/All-Products/Transmission/PoE-Switches/Desktop-PoE-Switch/PFS4218-16ET-240
