Komutatorius 6PORT 3POE+ 1POE++ TL-SG1006PP TP-LINK
Komutatorius 6PORT 3POE+ 1POE++ TL-SG1006PP TP-LINK
Komutatorius 6PORT 3POE+ 1POE++ TL-SG1006PP TP-LINK

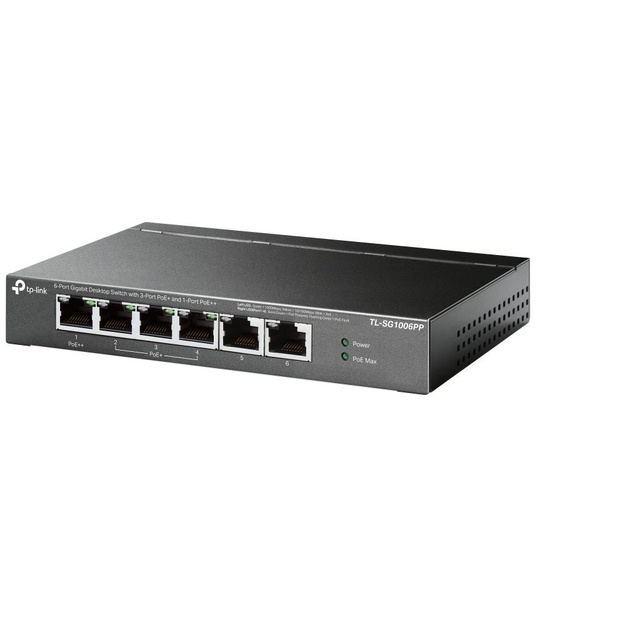

6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++
- 6× 10/100/1000 Mbps RJ45 ports

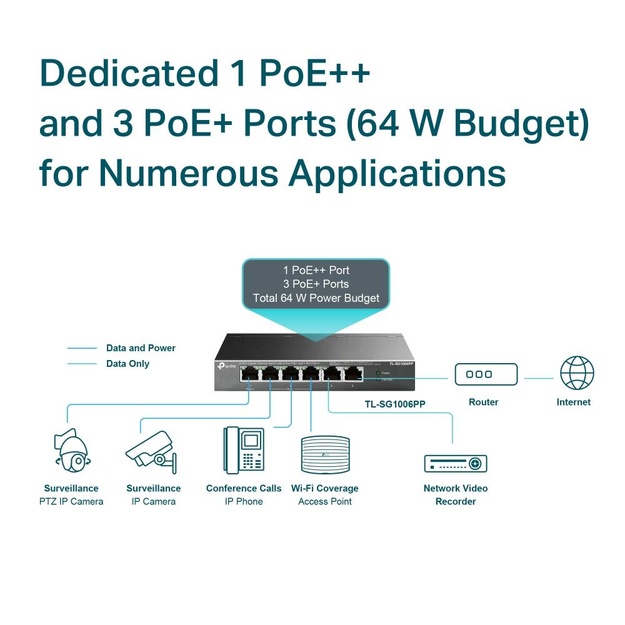

- With one PoE++ port and three PoE+ ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at/bt compliant PDs
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 30 W for each PoE+ port and 60W for PoE++ port
- Supports PoE Power up to 64 W for all PoE ports*

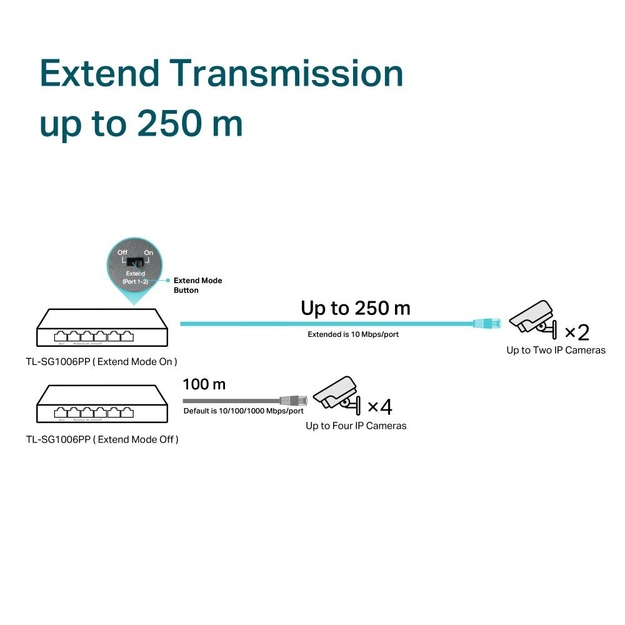

- Up to 250m data and power transmitting range under Extend Mode**

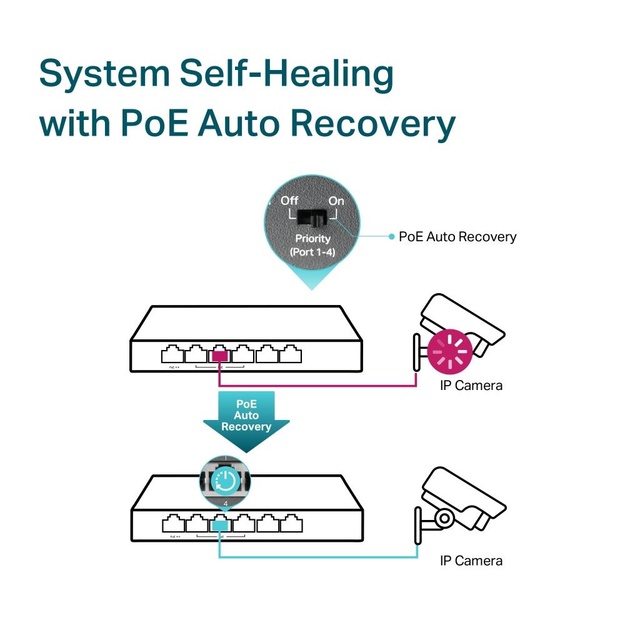

- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices

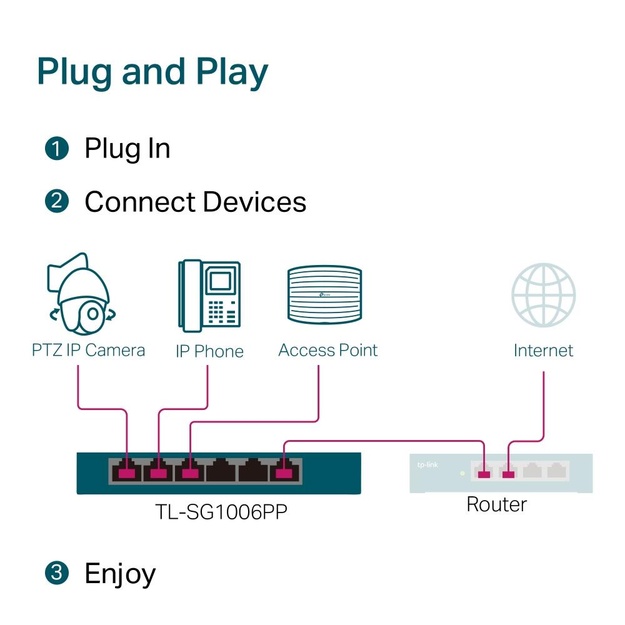

- Plug and Play, no configuration and installation required
| HARDWARE FEATURES |
| Interface |
• 6× 10/100/1000Mbps RJ45 Ports
• AUTO Negotiation
• AUTO MDI/MDIX |
| Network Media |
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity |
Fanless |
| External Power Supply |
External Power Adapter (Output: 53.5 VDC / 1.31 A) |
| Packet Forwarding Rate |
8.928 Mpps |
| PoE Ports (RJ45) |
• Port 1 compliances with 802.3af/at/bt; Ports 2-4 compliance with 802.3af/at
• Power Supply: 64 W |
| Mac Address Table |
4K |
| Switching Capacity |
12 Gbps |
| Dimensions ( W x D x H ) |
6.2x4.0x1.0 in (158x101x25 mm) |
| Max Power Consumption |
• 4.75 W (220/50 Hz. no PD connected)
• 71.46 W (220/50 Hz. with 64 W PD connected) |
| Max Heat Dissipation |
• 16.20 BTU/h (220/50 Hz. no PD connected)
• 243.68 BTU/h (220/50 Hz. with 64 W PD connected) |
| SOFTWARE FEATURES |
| Advanced Features |
• Compatible With IEEE 802.3af/at/bt Compliant PDs
• Mac Address Auto-Learning And Auto-Aging
• IEEE 802.3x Flow Control
• 802.1p/DSCP QoS
• IGMP Snooping
• Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission)
• PoE Auto Recovery (Ports 1-4) |
| Transfer Method |
Store-And-Forward |
| OTHERS |
| Certification |
FCC, CE, RoHS |
| Package Contents |
• TL-SG1006PP
• Power Adapter
• Installation Guide |
| Environment |
• Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing |
| Savybės |
| Jungčių skaičius |
6 |
| Montavimo tipas |
Yes |
| PoE+ jungtys |
4 |
