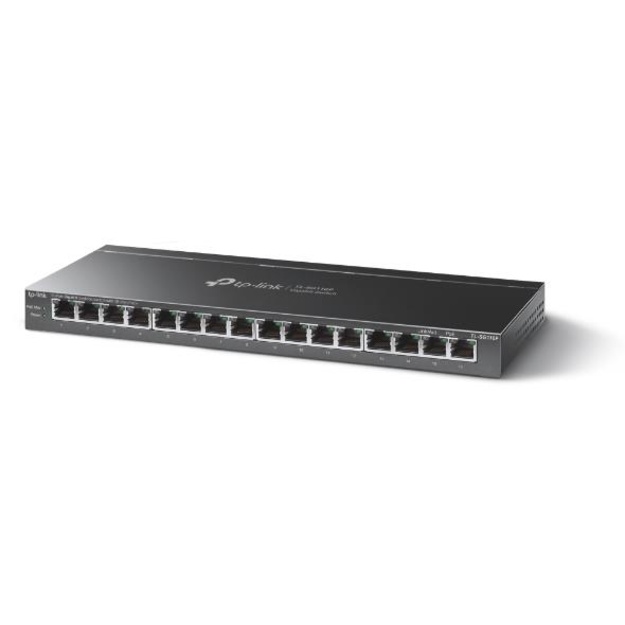

Komutatorius 16PORT 1000M POE+ TL-SG116P TP-LINK
Komutatorius 16PORT 1000M POE+ TL-SG116P TP-LINK
Komutatorius 16PORT 1000M POE+ TL-SG116P TP-LINK
- 16 10/100/1000Mbps RJ45 ports
- Plug and play, with no configuration required
- Durable metal casing of superior quality and professional appearance
- Intelligent management via a web user interface and downloadable utility
- Green technology reduces power consumption
| HARDWARE FEATURES |
| Standards and Protocols |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
| Interface |
16 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX |
| Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity |
Fanless |
| Power Supply |
External Power Adapter(Output: 12VDC/1.0A) |
| Dimensions ( W x D x H ) |
11.3 × 4.4 × 1.0 in. (286 × 111.7 × 25.4 mm) |
| Max Power Consumption |
9.19W(220V/50Hz) |
| Max Heat Dissipation |
31.36BTU/h |
| PERFORMANCE |
| Switching Capacity |
32Gbps |
| Packet Forwarding Rate |
23.81Mpps |
| MAC Address Table |
8K |
| Packet Buffer Memory |
4.1Mb |
| Jumbo Frame |
9KB |
| SOFTWARE FEATURES |
| Quality of Service |
Support Port-based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control |
| L2 Features |
IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention |
| VLAN |
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN |
| Transmission Method |
Store-And-Forward |
| OTHERS |
| Certification |
FCC, CE, RoHS |
| Package Contents |
TL-SG116E
Power Cord
Installation Guide
Rubber Feet |
| System Requirements |
Microsoft® Windows® for running Utility |
| Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
| Savybės |
| Jungčių skaičius |
16 |
| PoE+ jungtys |
16 |
