Pentabrid capability: Each channel supports up to 8MP: IP, HDCVI, AHD, TVI and CVBS access can be configured
8-channel BNC interface
Recording: HDCVI/AHD/HD-TVI recording: 4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF
All channel 4K(1 fps&ndash 7 fps) 6MP(1 fps&ndash 10 fps) 5MP(1 fps&ndash 12 fps) 4K-N, 4MP/3MP(1 fps&ndash 15 fps) 4M-N/1080P/720P/960H/D1/CIF (1 fps&ndash 25/30 fps)
IP: 8+8 channels, each channel up to 8MP, Max 128 Mbps incoming bandwidth
AI Coding/H.265+/H.265/H.264+/H.264 video compression
G.711A, G.711U, PCM audio compression,
1x SATA interface up to 16 TB storage
VGA/HDMI up to 4K output

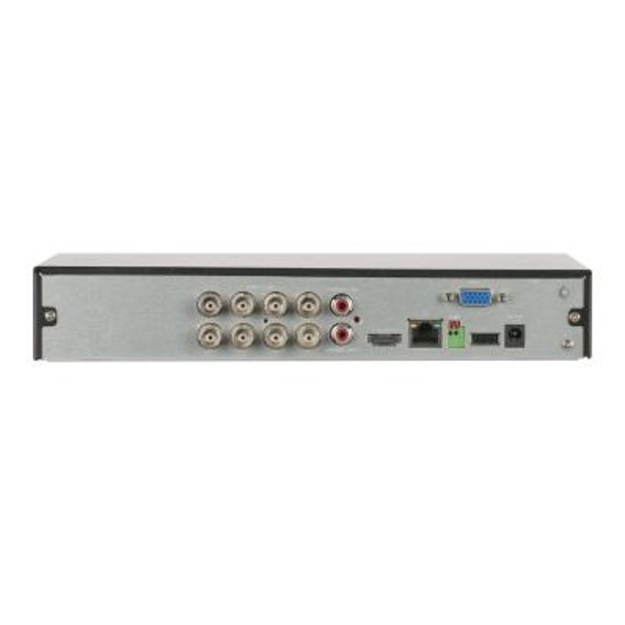

RJ-45, 2x USB ports, RS485
No front panel control, 1/1 Audio I/O, no Alarm I/O, Audio over Coax for 8 channels
Mini 1U case, mouse included
ONVIF 16.12, CGI Conformant, Smart Search
Third-party IP camera support: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
AI: Up to 2 channels video stream (analog channel) Perimeter Protection
Up to 8 channels video stream (analog channel) SMD Plus
Up to 2 channels video stream (analog channel) human face recognition
IoT & POS functionalities
Free IP monitoring software available
- 15pin D-sub
- 1
- Audio-In
- 1
- Audio-Out
- 1
- Camera Compatibility
- AHD 5MP/AHD 720P/Analog/HDCVI 1080P/HDCVI 4MP/HDCVI 8MP/HD-TVI/TurboHD 5MP/IP
- Category Code
- STD
- Description
- Pentabrid capability: Each channel supports up to 8MP: IP, HDCVI, AHD, TVI and CVBS access can be configured
8-channel BNC interface
Recording: HDCVI/AHD/HD-TVI recording: 4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF
All channel 4K(1 fps&ndash 7 fps) 6MP(1 fps&ndash 10 fps) 5MP(1 fps&ndash 12 fps) 4K-N, 4MP/3MP(1 fps&ndash 15 fps) 4M-N/1080P/720P/960H/D1/CIF (1 fps&ndash 25/30 fps)
IP: 8+8 channels, each channel up to 8MP, Max 128 Mbps incoming bandwidth
AI Coding/H.265+/H.265/H.264+/H.264 video compression
G.711A, G.711U, PCM audio compression,
1x SATA interface up to 16 TB storage
VGA/HDMI up to 4K output
RJ-45, 2x USB ports, RS485
No front panel control, 1/1 Audio I/O, no Alarm I/O, Audio over Coax for 8 channels
Mini 1U case, mouse included
ONVIF 16.12, CGI Conformant, Smart Search
Third-party IP camera support: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
AI: Up to 2 channels video stream (analog channel) Perimeter Protection
Up to 8 channels video stream (analog channel) SMD Plus
Up to 2 channels video stream (analog channel) human face recognition
IoT & POS functionalities
Free IP monitoring software available - Dimensions
- 260.0 mm × 237.4 mm × 47.6 mm
- DVR type
- 8 Channel
- Full Description Line
- 8 Channel|Camera Compatibility Analog/IP/AHD 720P/AHD 5MP/HDCVI 1080P/HDCVI 4MP/HDCVI 8MP/HD-TVI/TurboHD 5MP|SATA|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|DC12V, 2A
- HDMI
- 1
- Power supply requirements
- DC12V, 2A
- SATA
- Yes
- Shipping Box Depth
- 34 cm
- Shipping Box Height
- 31.5 cm
- Shipping box quantity
- 1
- Shipping Box Weight
- 1.489 kg
- Shipping Box Width
- 9 cm
- Unit Box Height
- 0.315
- Unit Box Length
- 0.34
- Unit Box Width
- 0.09
- Unit Brutto Volume
- 0.009639 cubm
- Unit Gross Weight
- 1.49 kg
- Unit Net Weight
- 0.9 kg
- Vendor Homepage
- www.dahuasecurity.com/ceen/products/All-Products/HDCVI-Recorders/Lite-AI-Series/I3-Series/4K-N/5MP-Series/XVR5108HS-4KL-I3
