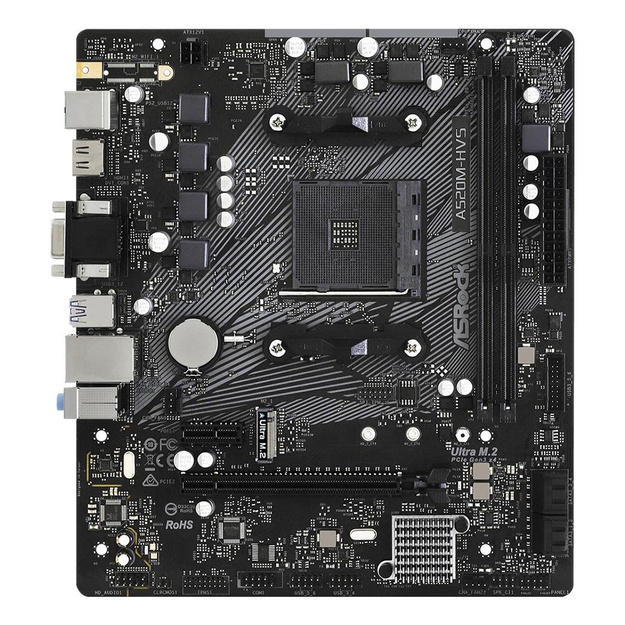

Pagrindinė plokštė|ASROCK|AMD A520|SAM4|MicroATX|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xM.2|Memory DDR4|Memory slots 2|1x15pin D-sub|1xHDMI|2xAudio-In|1xAudio-Out|2xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|A520M-HVS
Pagrindinė plokštė|ASROCK|AMD A520|SAM4|MicroATX|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xM.2|Memory DDR4|Memory slots 2|1x15pin D-sub|1xHDMI|2xAudio-In|1xAudio-Out|2xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|A520M-HVS
- 15pin D-sub
- 1
- Audio-In
- 2
- Audio-Out
- 1
- Category Code
- MBA
- Chipset
- AMD A520
- Description
- A520M-HVS
Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors(3000 and 4000 Series Processors)
6 Phase Power Design
Supports DDR4 4733+ (OC)
1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
Graphics Output Options: D-Sub, HDMI
7.1 CH HD Audio (Realtek ALC887 Audio Codec)
4 x SATA3, 1 x Ultra M.2(Gen3 x4 & SATA3)
6 x USB 3.2 Gen1(4 x Rear, 2 x Front)
6 x USB 2.0(2 x Rear, 4 x Front)
Realtek Gigabit LAN - Form Factor
- MicroATX
- Frequency speed
- 2133/2400/2666/2933/3200/3466/3600/3733/3800/3866/4000/4133/4200/4266/4333/4400/4466/4533/4600/4666/4733 MHz
- Full Description Line
- AMD A520|SAM4|MicroATX|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xM.2|DDR4|4733/4666/4600/4533/4466/4400/4333/4266/4200/4133/4000/3866/3800/3733/3600/3466/3200/2933/2666/2400/2133 MHz|Memory slots 2|1x15pin D-sub|1xHDMI|2xAudio-In|1xAudio-Out|2xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|SATA|Video Depending on CPU|Audio Realtek ALC887|LAN Realtek (Gigabit)|RAID SATA 0, 1, 10|TPM Header
- HDMI
- 1
- Integrated audio
- Realtek ALC887
- Integrated LAN
- Realtek (Gigabit)
- Integrated video
- Depending on CPU
- M.2
- 1
- Memory slots
- 2
- Memory type
- DDR4
- PCI-Express 3.0 16x
- 1
- PCI-Express 3.0 1x
- 1
- PS/2
- 1
- RAID
- SATA 0, 1, 10
- RJ45
- 1
- SATA
- Yes
- Shipping Box Depth
- 62 cm
- Shipping Box Height
- 50 cm
- Shipping box quantity
- 20
- Shipping Box Weight
- 17 kg
- Shipping Box Width
- 30 cm
- Socket
- SAM4
- TPM
- Header
- Unit Box Height
- 0.5
- Unit Box Length
- 0.62
- Unit Box Width
- 0.3
- Unit Brutto Volume
- 0.00465 cubm
- Unit Gross Weight
- 0.85 kg
- Unit Net Weight
- 0.6 kg
- USB 2.0
- 2
- USB 3.2
- 4
- Vendor Homepage
- www.asrock.com/mb/AMD/A520M-HVS/
| Savybės |
| Atminties tipas |
DDR4 |
| Dažnis |
2133/2400/2666/2933/3200/3466/3600/3733/3800/3866/4000/4133/4200/4266/4333/4400/4466/4533/4600/4666/4733 MHz |
| Formos koeficientas |
MicroATX |
| Įėjimo/išėjimo jungtys |
1; 2; 1; 1; 1; Yes; 2; 4 |
| Integruota video |
Depending on CPU |
| Integruotas LAN |
Realtek (Gigabit) |
| Lizdas |
SAM4 |
| Lustas |
AMD A520 |
| RAM atminties lizdai |
2 |
